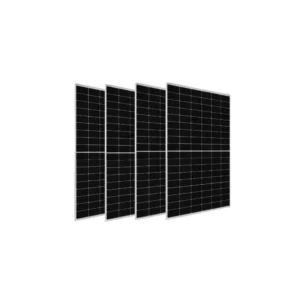

JA Solar Φωτοβολταϊκό Πάνελ JA-710TC-M/132 N-Type TopCon Glass-Glass Bi-Facial 710Wp

Technical Characteristics

Model: JAM66D46 LB 710W
Cell Type: Monocrystalline, N-type TOPCon
Number of cells: 132 half-cell (6×22)
Power (STC): 710 W
Module efficiency: 22.3%
Dimensions: 2384 × 1303 × 33 mm
Weight: 38.7 kg
Operating voltage (Vmp): 43.49 V
perating Current (Imp): 16.33 A
Open circuit voltage (Voc): 52.33 V
Short Circuit Current (Isc): 17.06 A
Max. System Voltage: 1500 V DC
Connectors: MC4-EVO2, IP68
Glass type: Tempered, 2.0 mm front and rear (glass-glass)
Cables: 1300 mm, 4.0 mm²
Temperature coefficient (Pmax): -0.29%/°C
Operating temperature: -40°C to +85°C
Protection Rating: IP68
